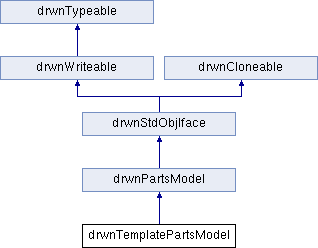

Inheritance diagram for drwnTemplatePartsModel:

Public Member Functions
	drwnTemplatePartsModel (const drwnTemplatePartsModel &model)

const char *	type () const
	returns object type as a string (e.g., Foo::type() { return "Foo"; })

drwnTemplatePartsModel *	clone () const
	returns a copy of the class usually implemented as virtual Foo* clone() { return new Foo(*this); }

void	learnModel (int nParts, const vector< cv::Mat > &imgs)

Public Member Functions inherited from drwnPartsModel
	drwnPartsModel (const drwnPartsModel &model)

int	numParts () const

const cv::Size &	getBaseSize () const

void	setBaseSize (const cv::Size &baseSize)

virtual void	clear ()

bool	save (drwnXMLNode &xml) const
	write object to XML node (see also write)

bool	load (drwnXMLNode &xml)
	read object from XML node (see also read)

void	swap (drwnPartsModel &model)

virtual double	inference (const cv::Mat &img, drwnPartsAssignment &mapAssignment) const

virtual double	inference (const cv::Mat &img, drwnPartsAssignment &mapAssignment, const cv::Point &centroidPrior) const

virtual double	inference (const cv::Mat &img, drwnPartsAssignment &mapAssignment, const vector< cv::Mat > &partPriors, const cv::Mat &centroidPrior) const

virtual double	inference (const cv::Mat &img, drwnPartsAssignment &mapAssignment, double &bestScale, double startScale, double endScale, int numLevels) const

cv::Mat	energyLandscape (const cv::Mat &img) const

void	slidingWindowDetections (const cv::Mat &img, drwnObjectList &detections) const

void	slidingWindowDetections (const cv::Mat &img, drwnObjectList &detections, int numLevelsPerOctave) const

cv::Mat	showMAPPartLocations (const cv::Mat &img) const

cv::Mat	showMAPPartLocations (const cv::Mat &img, const drwnPartsAssignment &assignment, double energy=DRWN_DBL_MAX, double scale=1.0) const

cv::Mat	showPartEnergyLandscape (const cv::Mat &img) const

drwnPartsModel &	operator= (const drwnPartsModel &model)

drwnPart *	operator[] (unsigned indx)

const drwnPart *	operator[] (unsigned indx) const

Public Member Functions inherited from drwnWriteable
bool	write (const char *filename) const
	write object to file (calls save)

bool	read (const char *filename)
	read object from file (calls load)

void	dump () const
	print object's current state to standard output (for debugging)

Protected Member Functions
virtual vector< cv::Mat >	computeMatchingCosts (const cv::Mat &img) const

Additional Inherited Members
Static Protected Member Functions inherited from drwnPartsModel
static vector< pair< cv::Point, cv::Size > >	initializePartLocations (int nParts, const cv::Size &imgSize)

static cv::Scalar	partColorMap (int v)

Protected Attributes inherited from drwnPartsModel
cv::Size	_baseSize

vector< drwnPart * >	_parts

The documentation for this class was generated from the following files:

drwnPartsModel.h
drwnPartsModel.cpp
